Types of Drilling Rigs in the Oil & Gas Industry

---

Drilling rigs are essential equipment used to drill wells and reach underground oil & gas reservoirs. Each type of rig is designed for specific environments and conditions.

Here are some common types used in the Oil & Gas Industry:

1, Land rigs

Used for drilling wells on land. They are the most common and widely used rigs.

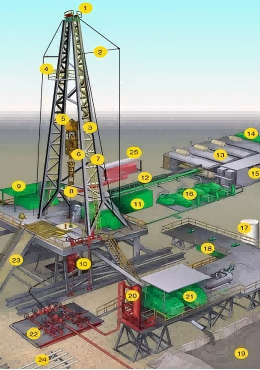

1，Crown Block water table

2, Catline boom and Hoist line

3, Drilling line

4,  Monkeyboard

5, Traveling Block

6, Top drive

7, Mast

8, Drill pipe

9, Doghouse

10, Blowout preventer

11, Water tank

12, Electric cable tray

13, Engine generator sets

14, Fuel tank

15, Electrical control house

16, Mud pumps

17, Bulk mud component tanks

18, Mud tanks(pits)

19, Reserve pit

20, Mud-gas separator

21, Shale shakers

22, Choke manifold

23, Pipe ramp

24, Pipe racks

25, Accumulator

2, Jack-up rigs

Offshore rigs that stand on the seabed using long legs. Suitable for shallow water drilling.

3, Semi-submersible rigs

Floating rigs designed for deepwater drilling. They remain stable even in rough sea conditions.

4, Drillships

Ships equipped with drilling equipment used for ultra-deepwater drilling.

Takeaway:

Choosing the right drilling rig depends on the location, water depth, and well conditions.
